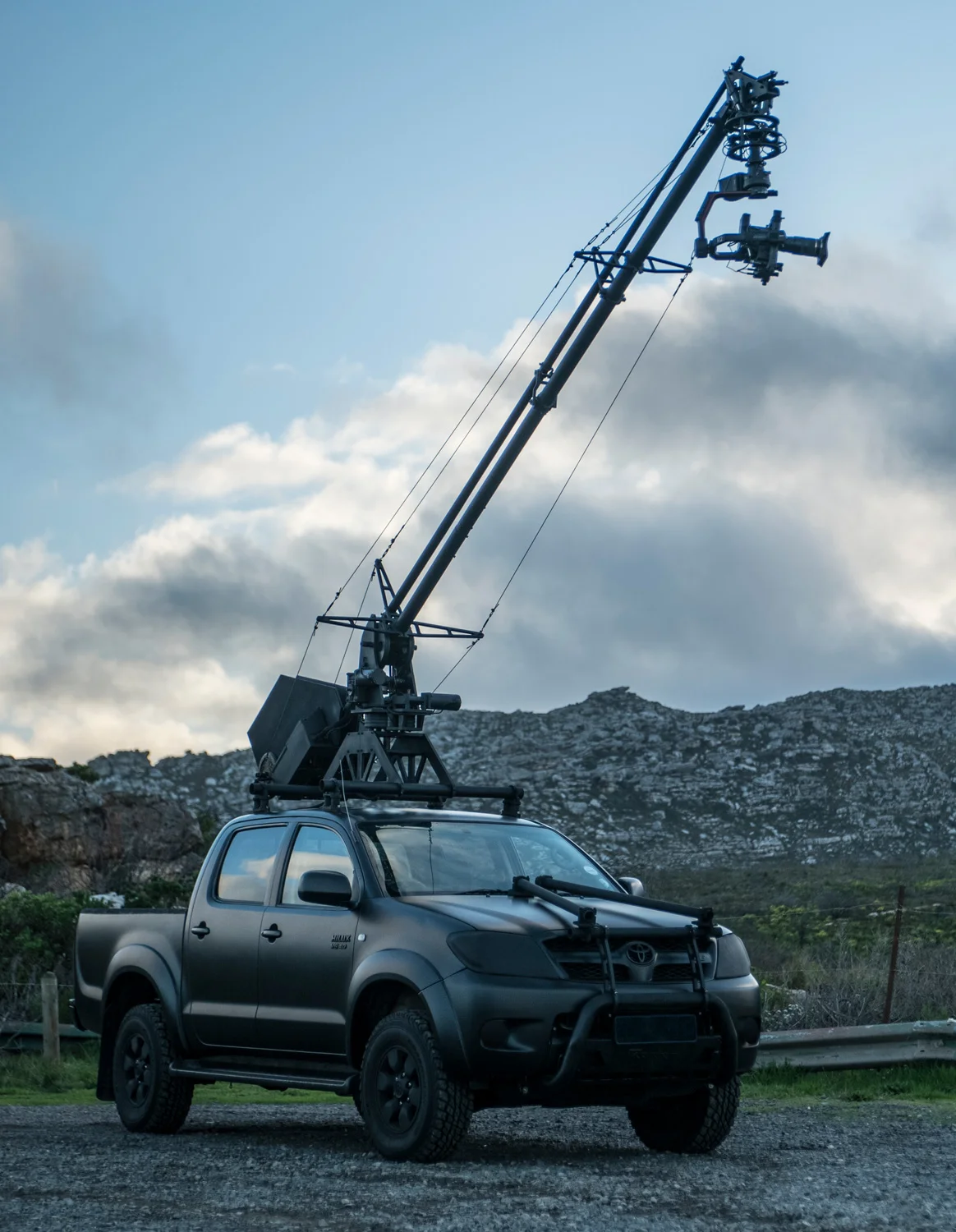

The Dragon.




Our renowned Dragon Arm, is a custom-built, fully mechanized car jib. Due to its light, 4.27m long arm it’s able to move fast to capture incredibly dynamic shots at speeds up to 100km/hr. The system uses either the DJI Ronin 2 head, or exactly the same Movi-PRO setup as our drones, hence making it affordable and efficient to have both systems on set - easily interchangeable within minutes. The jib arm is controlled separately to the Ronin 2 or Movi Pro, giving you absolute control when shooting.


Smooth

Dragon Interior

Full control

Dragon Arm

Affordable


Arm specs



Fully wireless remote control
Reach from fulcrum: 2.5m
Fulcrum from ground: 2.7m
Height from ground to camera 5.2m
Length of boom: 4.27m
Boom rotation: 360°
Speed: 6 sec/360°
Operational angle: ±45°
Max lens height front back: 4.6m
Camera payload capacity: 9kg
Height clearance: 3.3m
Weight: 180kg
4 person wireless communication devices
5 wired HD video taps
5051 aluminium marine grade
Trained remote arm operator

Screen Shot 2018-06-29 at 5.53.54 PM.png

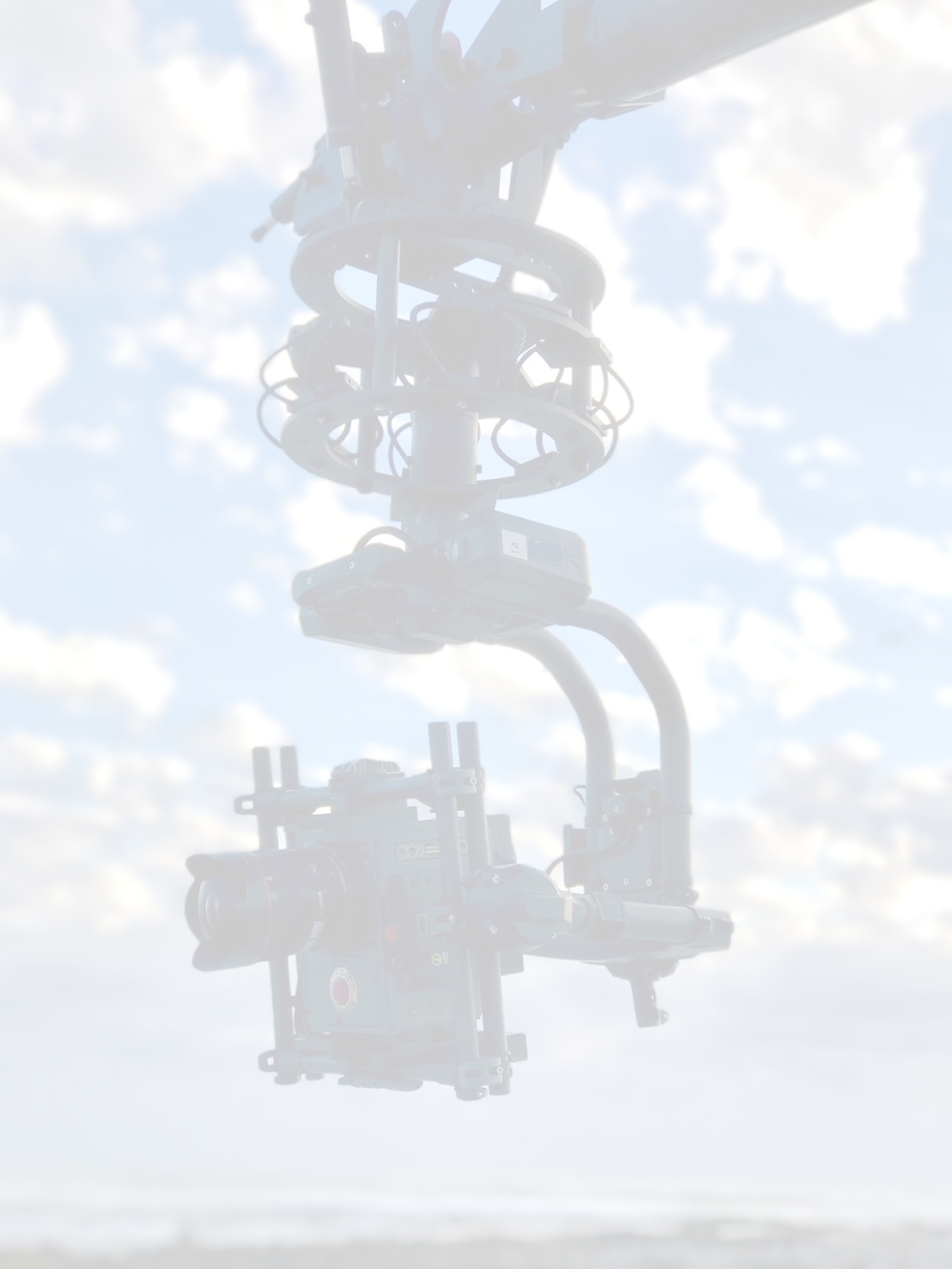

Head specs

3-axis gyro-stablished
Pan: 360° continuous
Roll: ±30°
Tilt: ±135°
Operational temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Built-in GPS
Power and HD video slip ring
Operate via wheels or joystick


Vehicle specs

Toyota Hilux 4.0L V6 Double Cab 4x4
0-100km/h: 11s loaded
340Nm torque
Automatic transmission
Weight: 2790kg
Trained Precision Driver
Seating for 6PAX including driver and arm operator, 5PAX in cab and 1 PAX in exterior back of vehicle
